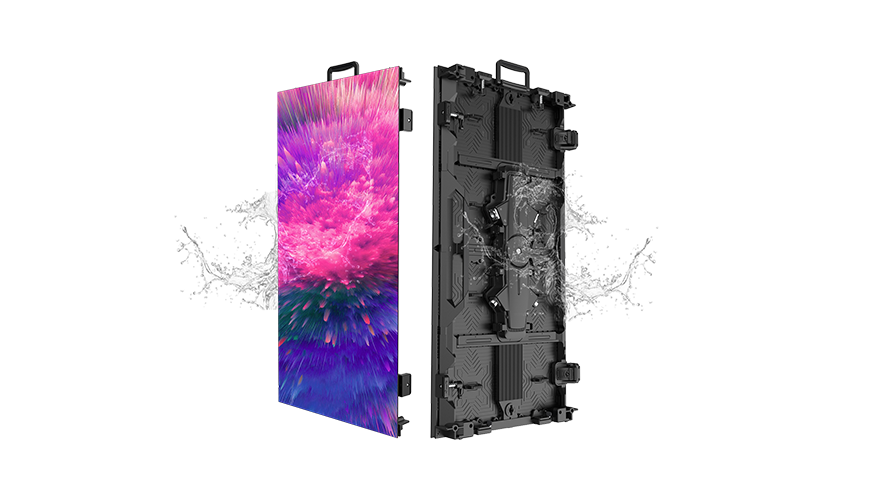

LEXII series

Stage rental, quick disassembly and assembly

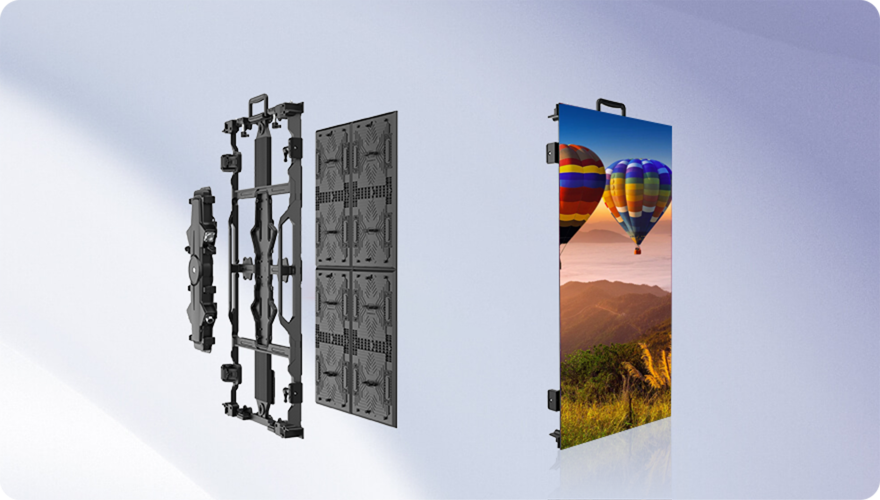

Modular design

Modularization of power boxes, enclosures, and modules

Capable of practical 5S fast loading and unloading

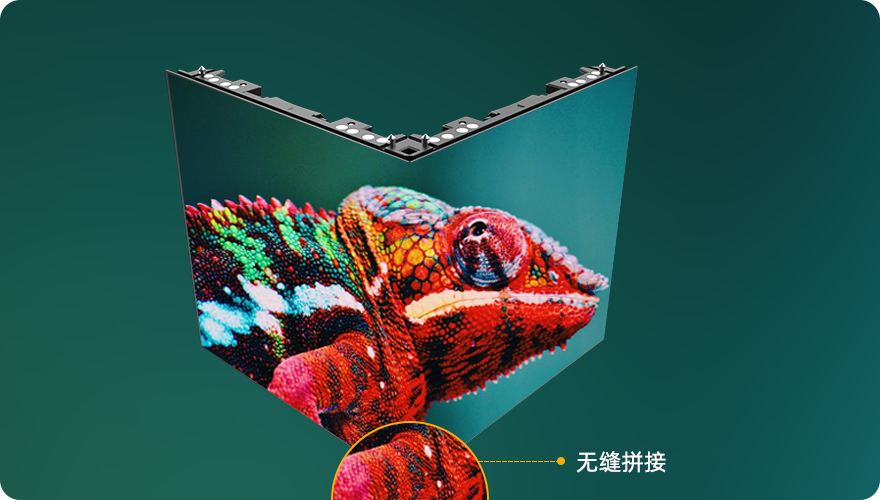

Diverse splicing

Independently developed arc-shaped lock design
Simple operation, easy to achieve seamless multi arc splicing of the box body
Compatible with L-shaped right angle expansion

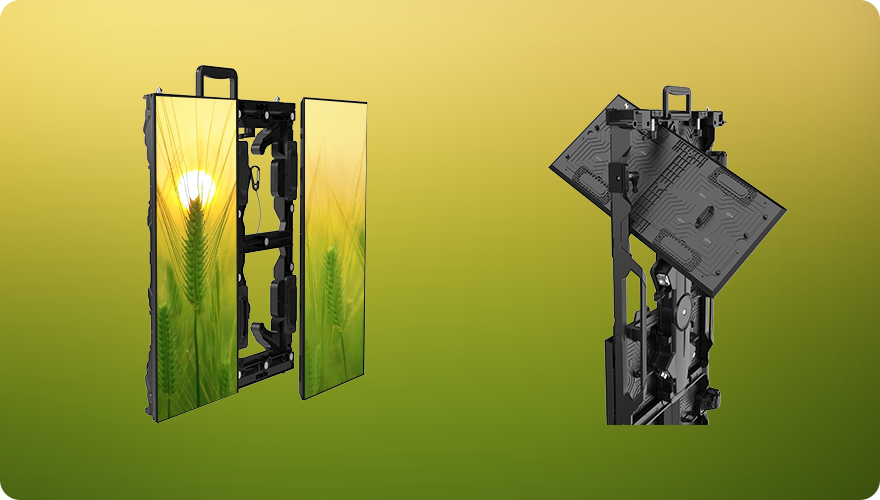

Convenient maintenance

Front and rear maintenance options are available

Easy to operate and time-saving

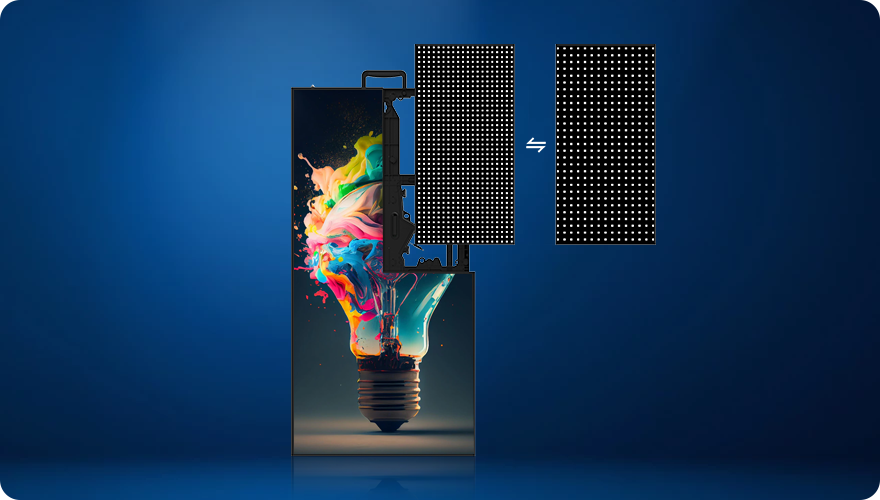

Universal box body

Same box
Modules with different point spacing can be used

Weatherability

Front/rear protection level IP65
Waterproof, dustproof, and oxidation resistant, efficiently ensuring the normal operation of the screen in harsh environments

Technical Parameter

Model

P1.9

P2.9

P3.9

P4.8

LED light model

SMD1515

SMD1415

SMD1921

SMD1921

Point spacing (mm)

1.9mm

2.9mm

3.9mm

4.8 mm

Application scenarios

户外

户外

户外

户外

模组尺寸(mm)

250mm*500mm

250mm*500mm

250mm*500mm

250mm*500mm

箱体尺寸(mm)

500/100x65

500/100x65

500/100x65

500/100x65

Weight (Kg)

7.5±5% / 13.5±5%

7.5±5% / 13.5±5%

7.5±5% / 13.5±5%

7.5±5% / 13.5±5%

brightness

＞1000

＞1000

＞1000

＞1000

Maximum power (w/㎡)

600

600

600

600

Average power (w/㎡)

180

180

180

180

Refresh rate (Hz)

≧3840

≧3840

≧3840

≧3840

弧度支持（°）

-10°to +10°

-10°to +10°

-10°to +10°

-10°to +10°

Protection grade

IP50

IP50

IP50

IP50

Maintenance method

前/后维护

前/后维护

前/后维护

前/后维护
