TES II - PRO

Outdoor full-color, flexible splicing

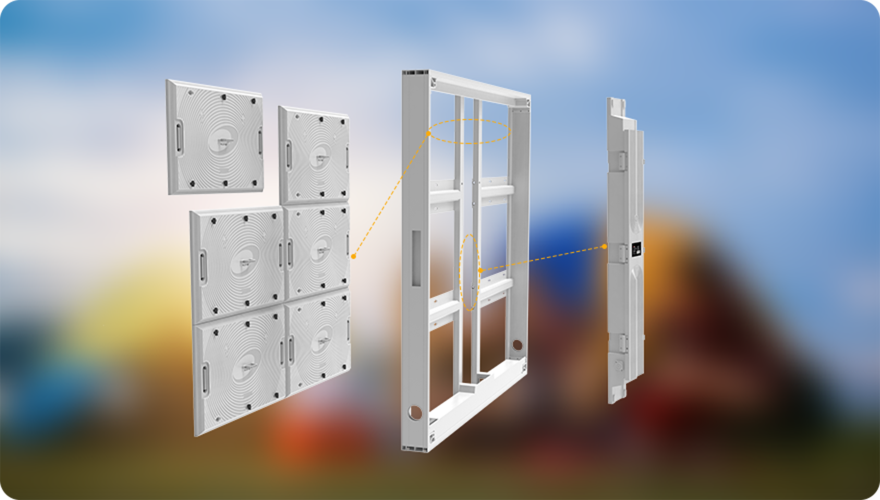

Highly integrated design

Module and power integration design

Support quick disassembly

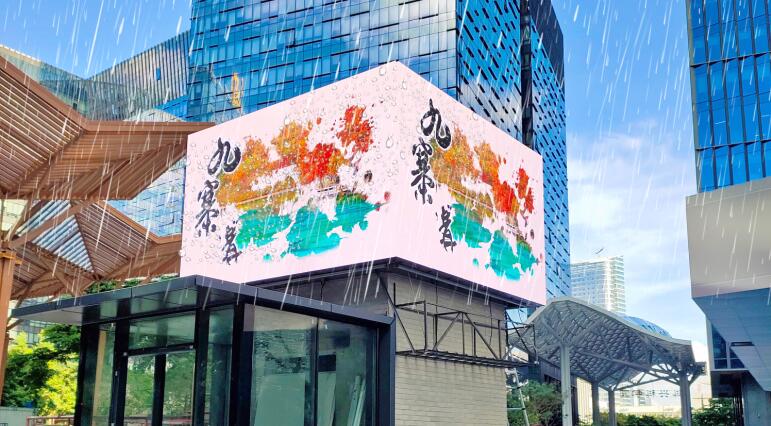

Support right angle splicing

Through a module with a 45 degree beveled edge design

Can achieve customized right angle screens

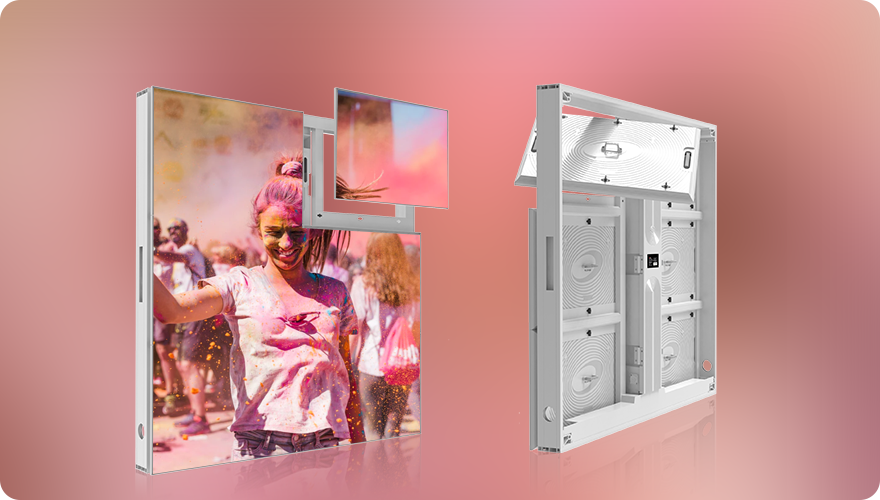

Convenient maintenance

Can be maintained earlier or later

Meet the installation needs of different screen bodies, convenient and fast

Module compatibility design

Modules with different point spacing can be replaced in the same box

Ultra thin and lightweight case

The thickness of the box is only 106mm, and the weight is only 26kg (aluminum box)

Save on structural transportation and installation costs

High protection design

The box and module are fully enclosed and waterproof, with strong weather resistance

Technical Parameter

PRODUCT MODEL

P6.67

 P8 P10 P10.66 P16
LED beads SMD 2727 SMD 2727 SMD 2727 DIP346 DIP346
Point spacing (mm) 6.67 8 10 10.66 16
Module size (mm) 480x320 480x320 480x320 480x320 480x320
Box size (mm) 960x960x106 960x960x106 960x960x106 960x960x113 960x960x113
Weight (Kg) 26 26 26 26 26
brightness 6500 6500 6500 10000 10000
Maximum power (W/㎡) 780 780 780 780 780
Average power (W/㎡) 250 250 250 250 255
Refresh rate (Hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Grayscale (Bit) 14-16 14-16 14-16 14-16 14-16
IP protection level (front/back) IP65 IP65 IP65 IP65 IP65
Maintenance method front/rear front/rear front/rear front/rear front/rear

Shenzhen Bode Display Technology Co., Ltd. was established in 2019. It is a national high-tech enterprise specializing in the research and development, production, sales, and solutions of LED optoelectronic products. The company is located in Shiyan Town, with a production area of 6000 square meters, and aims to become a professional LED production and supply provider
