TESII PRO-S series

Outdoor full-color, high brightness and lightweight

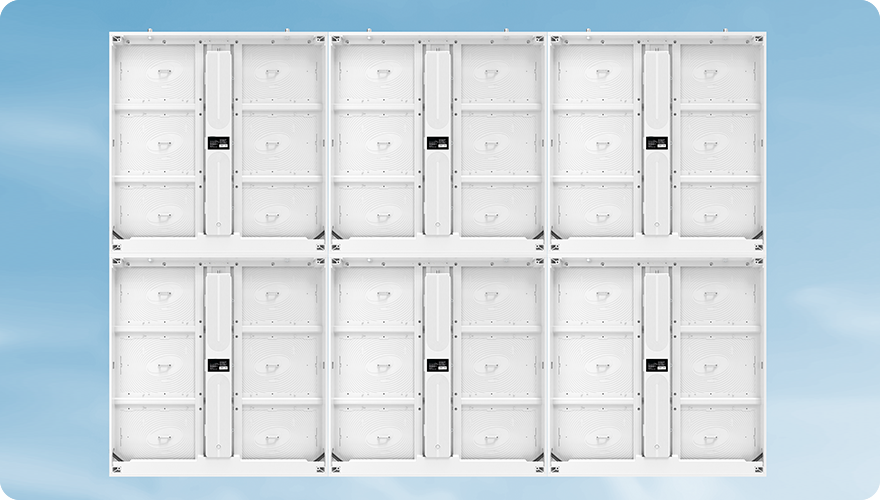

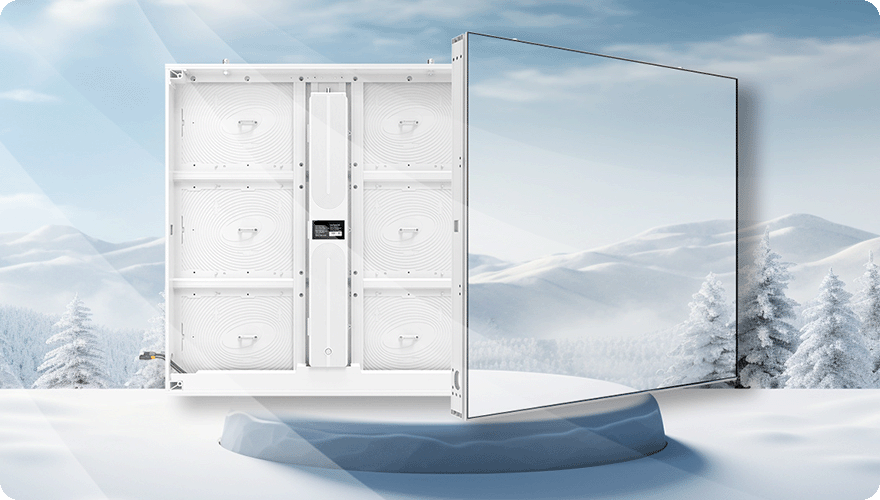

Ultra thin and light design

Exquisite box design

With a thickness of only 96mm and a weight of only 24kg, it maximizes the reduction of structural transportation and installation costs

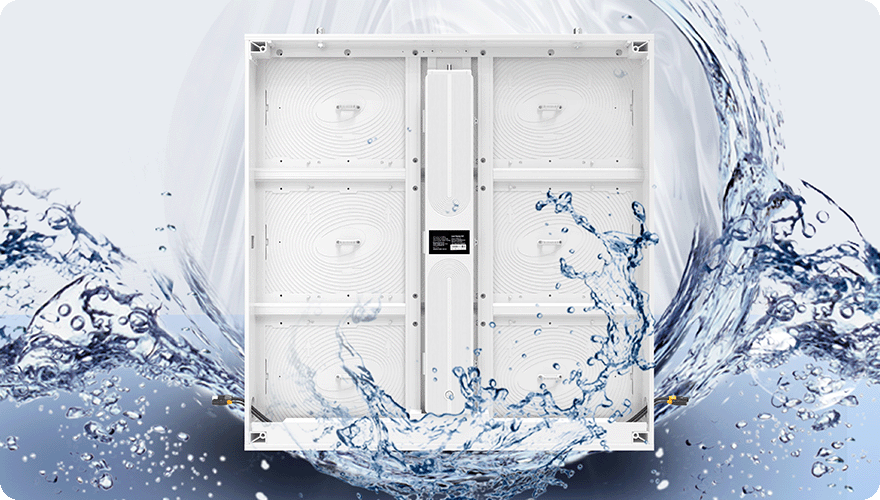

Fully enclosed module

IP65 ultra-high protection capability, waterproof, dustproof, and anti-oxidation

Each box undergoes rigorous testing to ensure the display screen
Stable operation even in extreme weather conditions

Sturdy and durable

Suitable for high salt spray and high corrosion areas

Such as rainy and humid areas and coastal areas

Energy conservation and environmental protection

Under the same brightness, it reduces power consumption, lowers usage costs, and extends service life

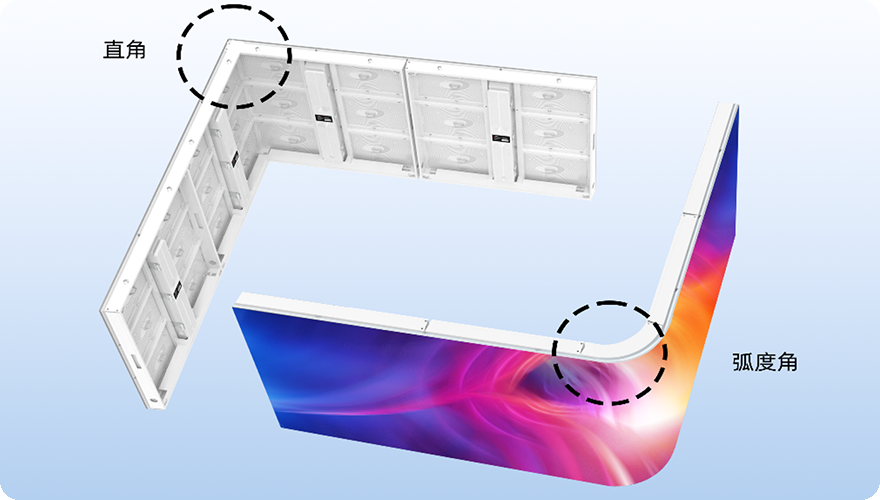

Creative splicing

Both the module and the box are designed with a 45 ° beveled edge

It can achieve seamless splicing of flexible radians and right angles,

Enhance visual effects and overall aesthetics

Hidden Line Design

Adopting a concealed cable design

Make the entire screen display cleaner and more beautiful

Technical Parameter

PRODUCT MODEL P5 P6.6 P8 P10 P10.66 P16
LED beads SMD 1921 SMD 2727 SMD 2727 SMD 2727 DIP346 DIP346
Point spacing (mm) 5 6.67 8 10 10.66 16
Module size (mm) 480x320 480x320 480x320 480x320 480x320 480x320
Box size (mm) 960x960x96 960x960x96 960x960x96 960x960x96 960x960x100 960x960x100
Weight (Kg)

24±5%

24±5%

24±5%

24±5%

 29±5% 29±5%
brightness 6,000(typ.), (5,000-10,000 可调)

10,000(typ.), (6,000-12,000 可调)
Maximum power (W/㎡) 780 780 780 780 500/350 500/350
Average power (W/㎡) 250 250 250 250 150/105 150/105
Refresh rate (Hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Grayscale (Bit) 14-16 14-16 14-16 14-16 14-16 14-16
箱体材质 铝箱体
IP protection level (front/back) IP65 IP65 IP65 IP65 IP65 IP65
Maintenance method back back back back back back

Shenzhen Bode Display Technology Co., Ltd. was established in 2019. It is a national high-tech enterprise specializing in the research and development, production, sales, and solutions of LED optoelectronic products. The company is located in Shiyan Town, with a production area of 6000 square meters, and aims to become a professional LED production and supply provider
