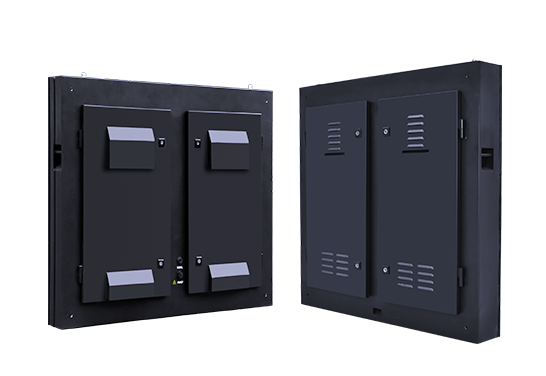

OS/OD series

Outdoor artifact, high brightness and energy-saving

High reliability and long lifespan

High quality SMD/DIP with excellent durability and low attenuation

24 years of LED self packaging technology to ensure product quality and achieve customer satisfaction

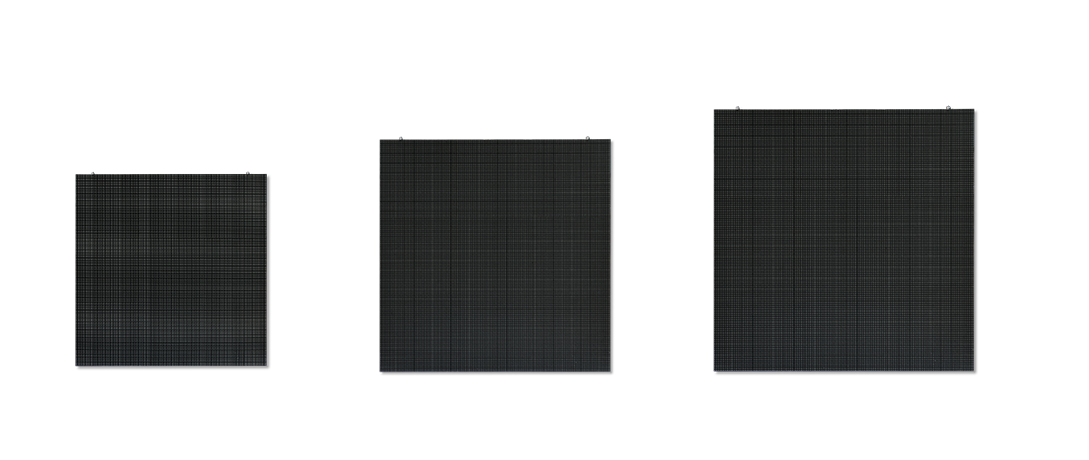

Customized design

Flexible and variable shape

Three different points can be placed in the same box at different intervals for use

Seamless splicing technology

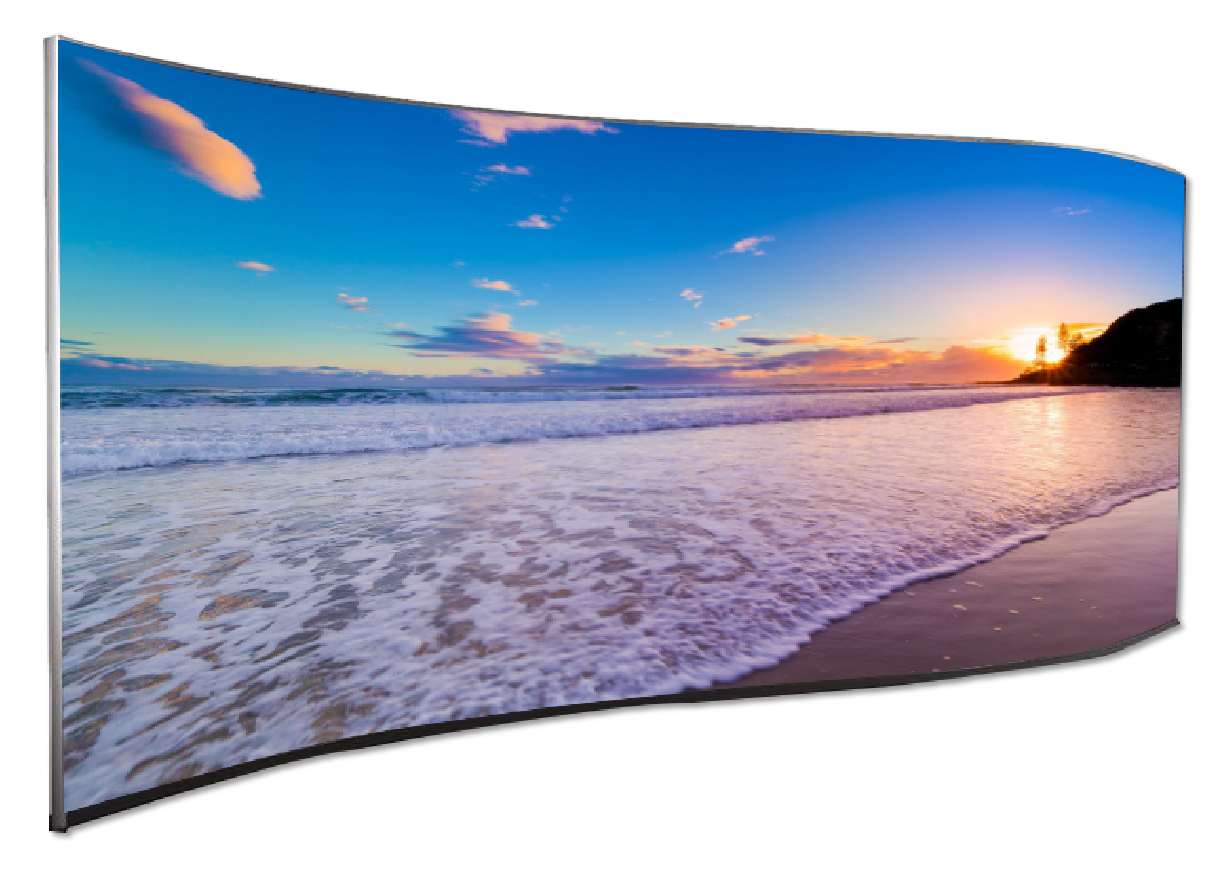

Customizable curved surface splicing

Inner arc, outer arc or curved screen, can be spliced freely

Security protection design

① All series of enclosures are equipped with automatic fans for better heat dissipation and extended product lifespan

② Air switches protect circuits or electrical equipment from short circuits, severe overloads, and undervoltages

③ Professional dust-proof structural design effectively seals the space between the circuit board and signal transmission conductors, preventing air flow and preventing more dust from entering and adsorbing on easily corrosive materials

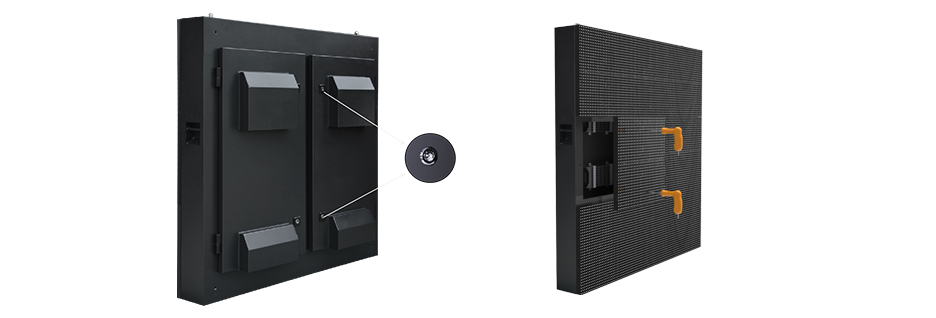

Maintenance method

Support front and back maintenance, truly achieving worry free, effortless, and time-saving for customers

Technical Parameter

PRODUCT MODEL

OS4

OS5

OS6

OS8

OS10

OD10

OD16
LED beads

SMD 1921

SMD 2727

SMD 2727

SMD 3535

SMD 3535

DIP 346

DIP 346
Point spacing (mm) 4 5 6 8 10 10 16
Module size (mm)

256×128

320×160

 192×192 256×128 320×160 320×160 320×320
Box size (mm) 768×768×140 960×960×140 960×960×140 1024×1024×140 960×960×140 960×960×145 960×960×145
Weight (Kg) 35 40 40 43 40 52 52
brightness 6000 6000 6500 6500 6500 7000 10000
Maximum power (W/㎡) 820 780 710 700 700 850 850
Average power (W/㎡) 287 273 248 245 245 125 125
Refresh rate (Hz) 1920 1920 1920 1920 1920 1920 1920
Grayscale (Bit) 16 16 16 16 16 16 16
IP protection level (front/back) IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54 IP65 / IP54
Maintenance method

back maintenance

back maintenance

back maintenance

back maintenance

back maintenance

back maintenance

back maintenance

Shenzhen Bode Display Technology Co., Ltd. was established in 2019. It is a national high-tech enterprise specializing in the research and development, production, sales, and solutions of LED optoelectronic products. The company is located in Shiyan Town, with a production area of 6000 square meters, and aims to become a professional LED production and supply provider
