Soft screen display screen

Film coated transparent screen

High permeability

The product transparency rate can reach over 85%

At a distance of 1 to 3 meters, the existence of the line is almost invisible
Retain the function of glass daylighting and perspective to ensure the consistency of the curtain wall glass landscape

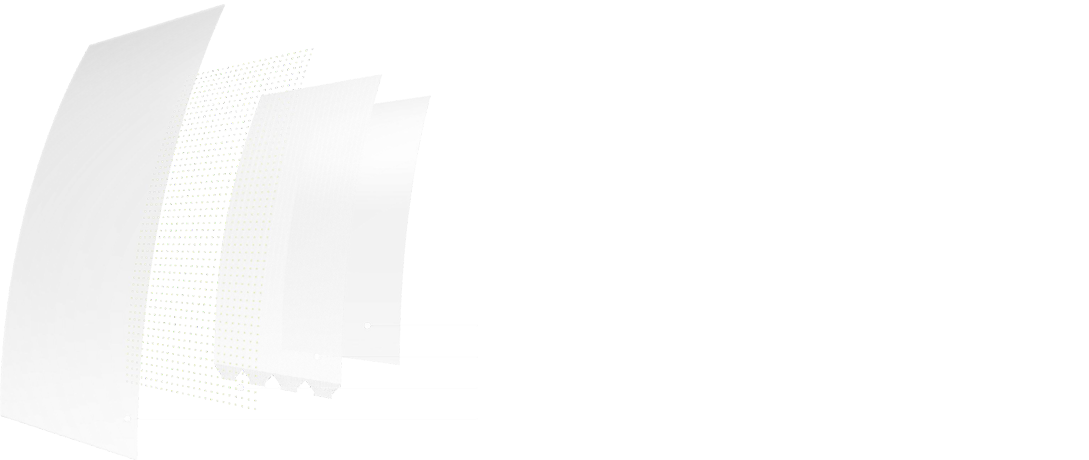

Thin and light adhesive

The thickness of the film screen is less than 2mm
Weight only 0.5-1.2kg/㎡
No need for steel frame structure, no need to change the appearance of the building,
Effectively reduce transportation and installation costs

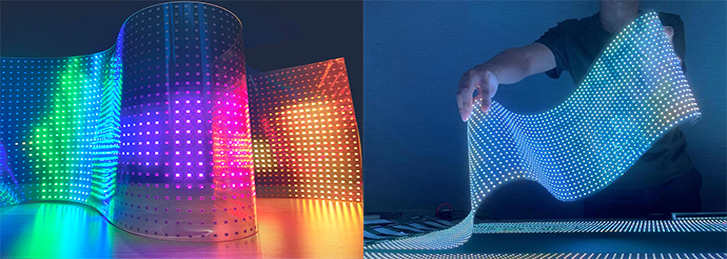

Strong flexibility

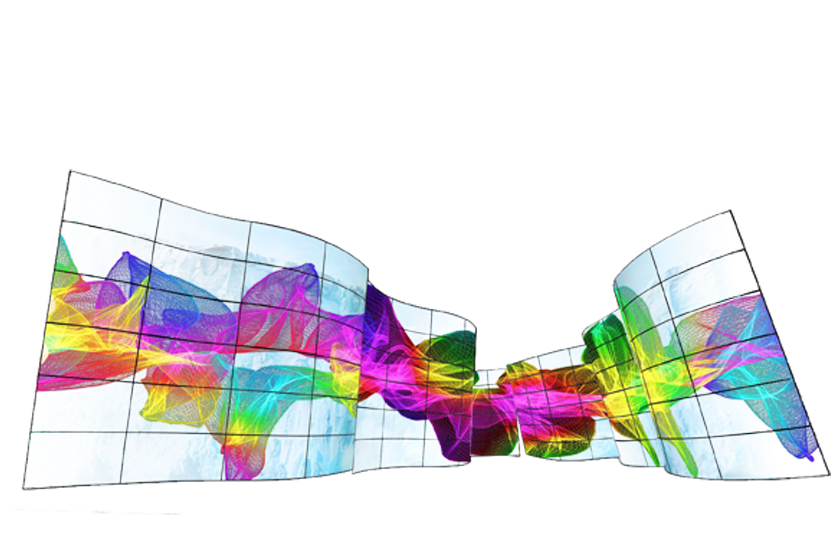

Can be pasted with any curvature
Curved screen, irregular screen, and straight screen can be easily achieved

Energy conservation and environmental protection

The heat dissipation is only 20% of that of traditional display screens Improved photoelectric conversion efficiency, reduced display screen failure rate, and extended display screen lifespan

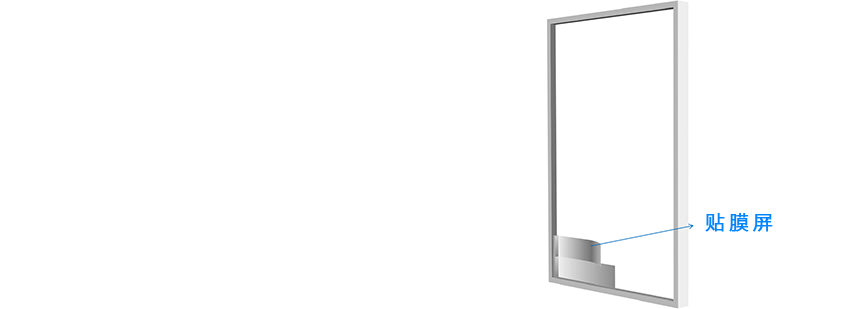

Easy installation

Just gently stick the membrane screen and connect the signal and power together,
Can effectively save installation and maintenance costs

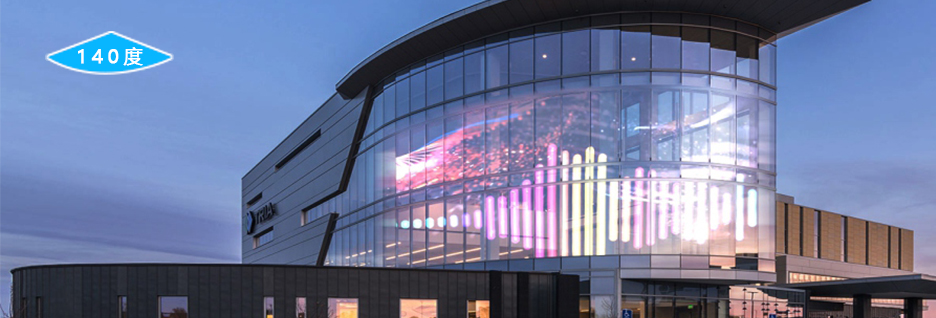

Ultra large viewing angle

The maximum viewing angle is up to 140 degrees, with no blind spots
No color cast, seamless splicing, perfect presentation

Technical Parameter

PRODUCT MODEL	P3	P5	P10	P15	P20	P30
LED beads	IC-LED	IC-LED	IC-LED	IC-LED	IC-LED	IC-LED
Point spacing (mm)	3	5	10	15	20	30
Module size (mm)	960x240	960x240	960x240	960x240	960x240	960x240
重量(Kg/m²)	3.2+5%	3.2+5%	3.2+5%	3.2+5%	3.2+5%	3.2+5%
亮度(Nit)	3000-5000	3000-5000	3000-5000	3000-5000	3000-5000	3000-5000
Maximum power (W/㎡)	800	800	200	200	200	200
Average power (W/㎡)	240	240	60	60	60	60
刷新频率(Hz）	1920-3840	1920-3840	1920-3840	1920-3840	1920-3840	1920-3840
通透率	>65%	80%	85%	90%	90%	90%
IP protection level (front/back)	IP65	IP65	IP65	IP65	IP65	IP65
扫描方式	15	15	15	15	15	15
