透明显示屏 – 博得显示

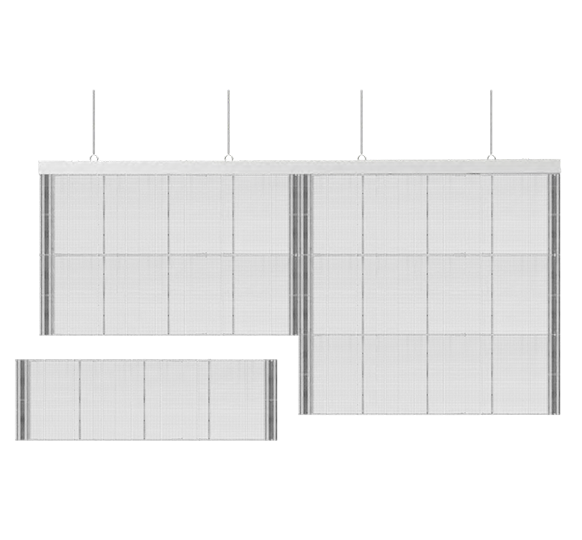

Transparent display screen

Lightweight and beautiful, energy-saving and environmentally friendly

Standard size

Unified size of box and module

Saving production cycles ensures high quality and precision of products during the production process.

UV resistant design

UV resistant gold wire packaging ensures better color consistency from different perspectives.

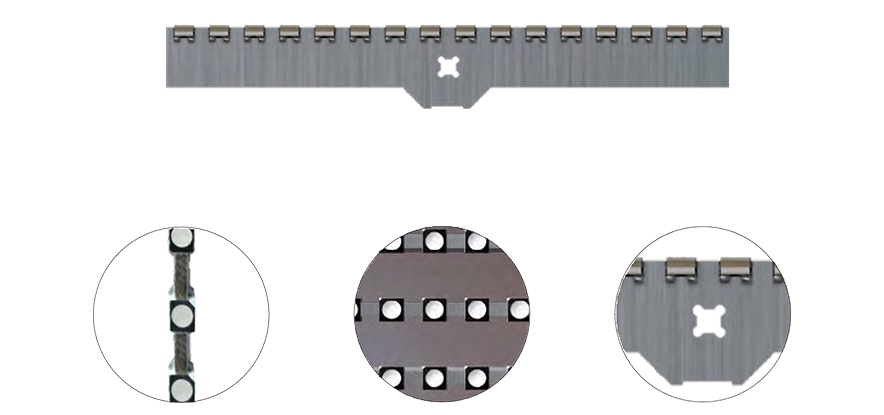

Unique glue filling technology

The PCB adopts embedded light tube technology to ensure that the light tubes are not easily damaged during installation, use, and maintenance.

Multiple installation methods

This transparent screen series can be installed horizontally or vertically.

Technical Parameter

PRODUCT MODEL	P2.6-5.6	P3.9-7.81	P7.81	P10.42
LED beads	SMD2020/1921	SMD2020/1921	SMD2020/1921	SMD2020/1921
Point spacing (mm)	H:2.6/V: 5.6	H:3.9/V: 7.8	7.8	10.42
Module size (mm)	500x125	500x125	500x125	500x125
Box size (mm)	500/1000×56	500/1000×56	500/1000×56	500/1000×56
Weight (Kg)	5+5% /9.6+5%	5+5% /9.6+5%	5+5% /9.6+5%	5+5% /9.6+5%
brightness	>1,000/5,000	>1,000/5,000	>1,000/5,000	>1,000/5,000
Maximum power (W/㎡)	600/800	600/800	600/800	600/800
Average power (W/㎡)	180/240	180/240	180/240	180/240
刷新频率(Hz）	1920-3840	1920-3840	1920-3840	1920-3840
Grayscale (Bit)	13-14	13-14	13-14	13-14
通透率	>45%	>55%	>65%	>70%
IP防护等级（前 / 后）	IP50	IP50	IP50	IP50
Maintenance method	前 / 后	前 / 后	前 / 后	前 / 后

Shenzhen Bode Display Technology Co., Ltd. was established in 2019. It is a national high-tech enterprise specializing in the research and development, production, sales, and solutions of LED optoelectronic products. The company is located in Shiyan Town, with a production area of 6000 square meters, and aims to become a professional LED production and supply provider
