小间距系列

Ultimate perspective, enjoy the aurora

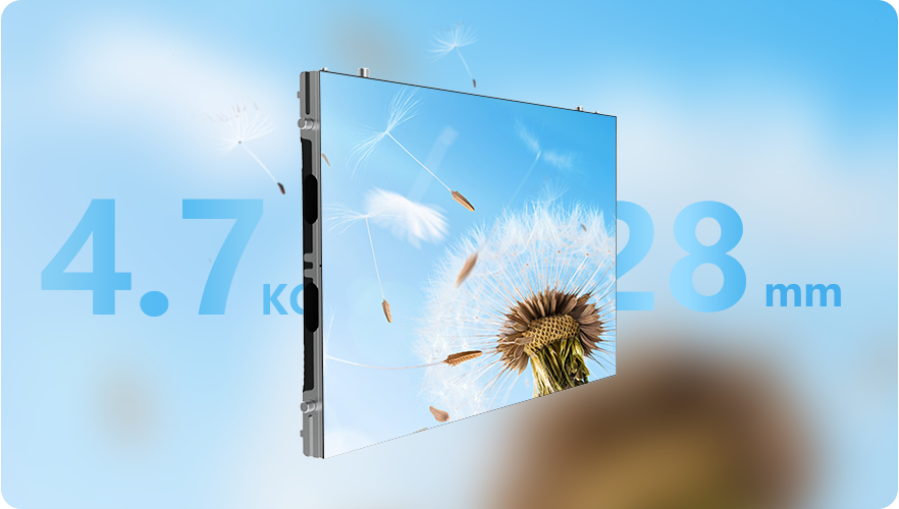

超轻薄设计

箱体轻薄，厚度28mm，重量4.7KG

移动方便，节省运费，安装便捷

Dual backup design

Dual backup of signal and power supply

Ensure stable operation of the display screen

Ensure safety and reliability

Intelligent module

Import calibration data into each module in advance

After replacing or resetting the module, data settings can be easily adjusted

HDR technology

Made with 4-in-1 MINI LED tubes and designed with a common cathode voltage divider power supply

Specially customized common cathode driver IC and power supply IC ensure that the entire screen does not generate heat,

Truly reaching the cold screen level and compatible with 3D display development

Resolving power:

Color gamut: BT.2020

Color depth: 16 bit

Refresh rate: 3840Hz

Driver IC: ≥ 20000:1 (visual contrast)

Front maintenance design

All modules, power supplies, and internal electronic devices can be designed for front maintenance from the front of the enclosure,

greatly improving maintenance efficiency

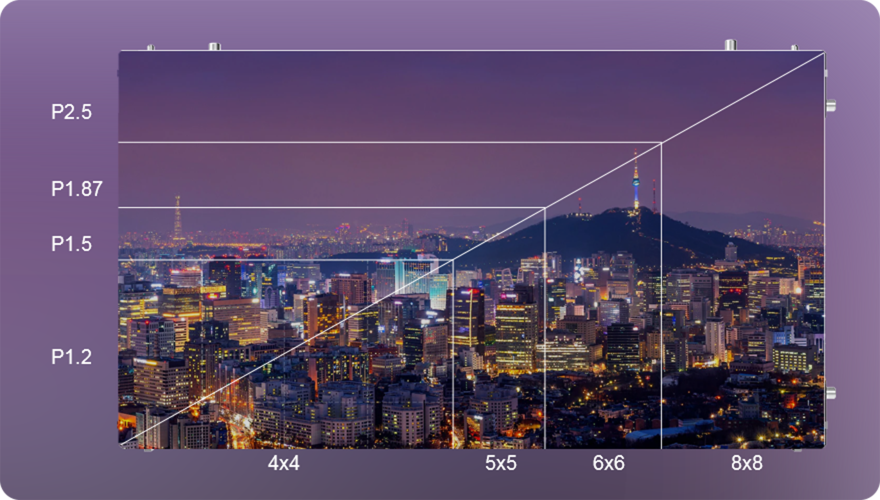

16: 9 Golden Ratio

The golden ratio can be extended to 4K, 6K, 8K

Technical Parameter

PRODUCT MODEL P0.7 P0.9 P1.2 P1.5 P1.8
LED beads MD-0.7/SMD0606 MD-0.7/SMD0606 SMD 1010 SMD 1010 SMD 1010
Point spacing (mm) 0.7 0.9 1.2 1.5 1.8
Module size (mm) 300×168.75 300×168.75 300×168.75 300×168.75 300×168.75
Box size (mm) 600×337.5×28 600×337.5×28 600×337.5×28 600×337.5×28 600×337.5×28
Weight (Kg) 4.7 4.7 4.7 4.7 4.7
brightness >700 >700 >800 >800 >800
Maximum power (W/㎡) 800 800 800 800 550
Average power (W/㎡) 210 210 240 240 180
Refresh rate (Hz) 3840 3840 3840 3840 3840
Grayscale (Bit) 16 16 16 16 16
IP protection level (front/back) IP30 IP30 IP30 IP30 IP30
Maintenance method Front maintenance Front maintenance Front maintenance Front maintenance Front maintenance

Shenzhen Bode Display Technology Co., Ltd. was established in 2019. It is a national high-tech enterprise specializing in the research and development, production, sales, and solutions of LED optoelectronic products. The company is located in Shiyan Town, with a production area of 6000 square meters, and aims to become a professional LED production and supply provider
